Friday
Quixxote 29er
29er BB area
29er Tubeset
Tubeset ready for cuts and to become a 29er MTB.
29er BB area
This frame will feature an offset seat-tube/BB junction to allow for additional tire clearance with short chainstays.
29er Dropouts
This 29er will be a disc brake specific single speed.
Saturday
Rolling through.
A few projects have finished since my last post. Dave's Fixed Fight 3 "Prize Fighter" is completed and at the powder-coater.
I refinished an older Centurion for a friend, along with a new powder-coat.

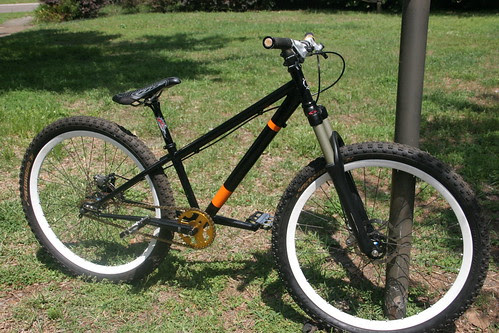

I also built up a dirt-jumper that is yet to be named. The DJ is equipped with sliding dropouts for single speed use, but is fully capable of becoming a geared bicycle.
This is my first attempt at a wish-bone style seat stay configuration.
Fixed Fight 4 has also come and gone, and for 2010 I offered yet another customer frame to the victor. That person being Mr. Pete Young. We spoke briefly, but the gist is he is wanting a single speed cyclocross bike. Details are not nailed down, so the tubing selection hasn't even begun yet.
I refinished an older Centurion for a friend, along with a new powder-coat.
I also built up a dirt-jumper that is yet to be named. The DJ is equipped with sliding dropouts for single speed use, but is fully capable of becoming a geared bicycle.
This is my first attempt at a wish-bone style seat stay configuration.
Fixed Fight 4 has also come and gone, and for 2010 I offered yet another customer frame to the victor. That person being Mr. Pete Young. We spoke briefly, but the gist is he is wanting a single speed cyclocross bike. Details are not nailed down, so the tubing selection hasn't even begun yet.
Friday
Prize Fighter is getting finished!
Just a few more hours worth of work left on David's Prize Fighter.
As it sits right now.
I saw Dave at a local shop the other night and he is itching with anticipation!
H2O Bosses are brazed in as well as his internal hub housing routing. I still need to add the fender eyelets, bridges and brake routing. BOMBER.
As it sits right now.
I saw Dave at a local shop the other night and he is itching with anticipation!
H2O Bosses are brazed in as well as his internal hub housing routing. I still need to add the fender eyelets, bridges and brake routing. BOMBER.
Tuesday
Frames have shipped.
Saturday
26" Hardtail.
Mike's hardtail is welded up. At least the front triangle. I haven't gone to bed before 3am yet this week. I was really rocking yesterday, and was just in the zone. Laying down some clean welds is ultra motivating. Images below.
I have some photography to work on this weekend, so I may not get to the rear tri until next week. We'll see. Like I said, it's going ultra smooth so I may be working on it sooner than expected.
I have some photography to work on this weekend, so I may not get to the rear tri until next week. We'll see. Like I said, it's going ultra smooth so I may be working on it sooner than expected.
Wednesday
David's FF3 Frame.
I've finally gotten around to David's frame. This custom frame is the prize for Fix Fight 3 held in St Pete back in April. Dave went back and forth between a fixed frame or a cross frame, but has landed on a single speed road frame.
He'll be getting double butted tubing throughout, Tange chain stays, 1.125" headtube, and split dropouts so he can one day run a belt drive. It is the way of the future, and Dave will be prepared.
I began work yesterday, and welded the BB to the seat tube, and cobbled his seat tube lug as well. The head tube is cut to length and vent holes drilled. The HT will get some custom work done, too. And the seat tube isn't yet finished either. Stay tuned.
He'll be getting double butted tubing throughout, Tange chain stays, 1.125" headtube, and split dropouts so he can one day run a belt drive. It is the way of the future, and Dave will be prepared.
I began work yesterday, and welded the BB to the seat tube, and cobbled his seat tube lug as well. The head tube is cut to length and vent holes drilled. The HT will get some custom work done, too. And the seat tube isn't yet finished either. Stay tuned.
Monday
Another frame begins.
As the title states I have begun another frame.
Mr Mike wanted to go 26" hardtail and is replacing a Specialized Hardrock SS. Big time upgrade. Double butted crmo tubing through out and this time I am using some Surly Instigator dropouts. They will be getting drilled out to get rid of body fat. I've beend sitting on these for a couple years and this seems like a good project for them.
I managed to get the seat tube welded to the BB shell as well as the seat tube sleeve brazed on.
I got to use a new fixture for the seat tube/bb weld, and it produced a quick, straight result. I was using my frame fixture, but there were too many possible variables to cause a misalignment. I checked it afterward on my stone block I use for alignment and it was spot on! I'm working super late, so now it's time for a shower then bed.
Mr Mike wanted to go 26" hardtail and is replacing a Specialized Hardrock SS. Big time upgrade. Double butted crmo tubing through out and this time I am using some Surly Instigator dropouts. They will be getting drilled out to get rid of body fat. I've beend sitting on these for a couple years and this seems like a good project for them.
I managed to get the seat tube welded to the BB shell as well as the seat tube sleeve brazed on.
I got to use a new fixture for the seat tube/bb weld, and it produced a quick, straight result. I was using my frame fixture, but there were too many possible variables to cause a misalignment. I checked it afterward on my stone block I use for alignment and it was spot on! I'm working super late, so now it's time for a shower then bed.
Tuesday
Update.
Mark's frame is coming together. He's super interested in the process, but since I use ultra crude, and very basic mitering and cutting methods he hasn't swung by to witness the process.
In other news, Mr Mark and his family welcomed a new addition this past weekend. Congrats Mark and family!
Here is Mark's Quisby as it stands.
Chainstay clearance, with 2.3 Neo-Moto at 16.5"
I also finished my son's kick bike. I assembled it to make sure fit was good (for now). It will be heading to the powdercoater for a spray next week. I built the frame and handle bar.
The wheels are 8" cart wheels, and I used a 12" fork and just moved the dropouts and cut off the excess fork.
Images after paint will be up when that happens.
In other news, Mr Mark and his family welcomed a new addition this past weekend. Congrats Mark and family!
Here is Mark's Quisby as it stands.
Chainstay clearance, with 2.3 Neo-Moto at 16.5"
I also finished my son's kick bike. I assembled it to make sure fit was good (for now). It will be heading to the powdercoater for a spray next week. I built the frame and handle bar.
The wheels are 8" cart wheels, and I used a 12" fork and just moved the dropouts and cut off the excess fork.
Images after paint will be up when that happens.
Sunday
Mark's frame is underway!
The seat tube is finished, with an integrated seatpost clamp and H2O bosses. We are using a 73mm BB shell to increase tire clearance and keep a short CS length. Similar to a 26" wheeled MTB. The CS length will be variable since the dropouts will be a sliding style. I mitered the top tube at the seat tube, and next comes the Head tube's miter.
The line drawn on the TT inticates where the tube's wall thickness changes. It is important to be aware of this change. We're using OX Platinum for the main tubes to keep things strong and light weight for Mark!
Last night I also added cantilever mounts to a local guys Surly Steam Roller. Pete wanted better braking for skids on the polo court. He picked up his bike this after noon with a huge smile on his face. I added he mounts, installed a Avid brake, and Pete bought some very crazy handle bars off me for his newly modified Steamroller.
The line drawn on the TT inticates where the tube's wall thickness changes. It is important to be aware of this change. We're using OX Platinum for the main tubes to keep things strong and light weight for Mark!
Last night I also added cantilever mounts to a local guys Surly Steam Roller. Pete wanted better braking for skids on the polo court. He picked up his bike this after noon with a huge smile on his face. I added he mounts, installed a Avid brake, and Pete bought some very crazy handle bars off me for his newly modified Steamroller.
Thursday
The Next Quisby
All of Mr. Marks tubing is in, in exception for his seat tube 'lug'. that will reinforce the seattube to prevent tube failure.
He will be using the new IRD sliding dropouts, modeled after the Eric Baar (of Ground Up Designs) slider. Mark wanted to keep this frame very clean and simple. He is coming from riding a BMW park bike with 24", so I wanted to go a little beefier than a standard XC design. I know this bike will get some air-time. Mark rides a FS Rocky Mountain with 26" wheels but all of his (2) hardtails are 24" wheeled bikes. This will become Mark's primary hardtail trail bike.
Here are a few images of his tubeset.
Brandon's Quisby is at the painter's. He's getting a wet paint rather than a powdercoat. Photos when it returns!
He will be using the new IRD sliding dropouts, modeled after the Eric Baar (of Ground Up Designs) slider. Mark wanted to keep this frame very clean and simple. He is coming from riding a BMW park bike with 24", so I wanted to go a little beefier than a standard XC design. I know this bike will get some air-time. Mark rides a FS Rocky Mountain with 26" wheels but all of his (2) hardtails are 24" wheeled bikes. This will become Mark's primary hardtail trail bike.
Here are a few images of his tubeset.
Brandon's Quisby is at the painter's. He's getting a wet paint rather than a powdercoat. Photos when it returns!
